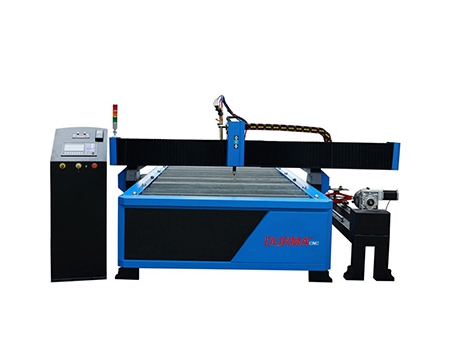

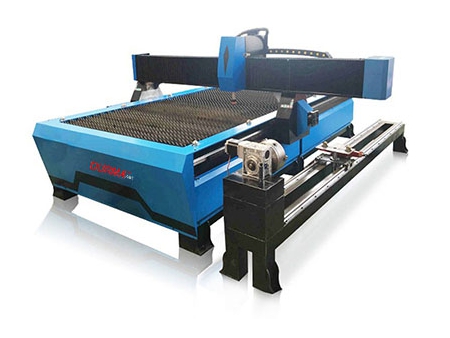

Máy cắt plasma CNC

Tải về

Trang web: https://cnclasercutting-vn.com/9-1-cnc-plasmas-cutter-cnc-oxy-fuel.html

Thông số chính
1. Model: TNC-1212, TNC-1325, TNC-1530, TNC-1540, TNC-1560, TNC-2030, TNC-2040, TNC-2060
2. Optional: Tube cutting
3. Electrics: Schneider Electrics – Germany (Travel switch & Limit switch)
4. CNC System:F2300A Shanghai Fangling

Model	TNC-1325,1530,1830,1840,2030,2040
Frame	Square tube integral guide
X Y Z Rail	Taiwan HIWIN Linear guide
Transmission	X/Y rack and pinion, Z Taiwan TBI ball Screw
Motor Drive	Stepper Motor drive
Control System	DSP/START
Cutting Thickness	3mm-25mm stainless steel
Plasma Power Supply	63A/100A/160A/200A
Working Speed	8000mm/min
Working Voltage	380V,3PH,50/60HZ
Software	ArtCAM/Type 3/Ucancam

The plasma cutting machine uses desktop gantry structure with double-side drive. X & Y axes track are precise cylindrical linear guide rails, precise gear and rack drive, runs stably.
Machine frame adopts the whole welding and annealing treatment, main frame is made by medium-sized steel pipe through welding; rail base plates are made through the planer precision processing, high strength, good precision and no deformation.
Crossbeam, side panels and all movable parts are made by aluminum alloy through fine casing and milling, with features of high strength and small inertia, ensuring the high strength and avoiding the cutting positioning instability caused by high inertia.
Adopting HP105 portable arc-pressure height regulator which can automatically regulates the height between cutter and plate to ensure the cutting quality. Scientific structure can effectively avoid collision between cutting head and steel plates owning to reaction rate cannot matches with that of cutting head.
Specimen closed environmental bottom groove and dust treatment system timely discharge dust and provides a healthy working environment for workers.

1. Desktop gantry structure with double-side drive
1. 1) Y axis adopt double linear guide rail, gear and rack transmission is more stable.
  2) Cast aluminum beam, lightweight, low inertia and high precision.
1. X axis adopts double straight line & pinion and rack transmission, running more stable
1. F1620 portable arc pressure adjustor is adopted to automatically adjust the cutting height along with the uneven steel plate to ensure the cutting quality.
1. Shanghai Jiaotong university F2300A CNC controller
1. 1) Hyperthern plasma cutting head
  2) The Z axis adopts high precision linear module, with higher precision and automatic height adjustment
1. Centralized lubrication system
1. Schneider electric
1. Closed environment-friendly bottom channel (water filling) and dust treatment system can timely and effectively discharge dust to ensure the staff health
